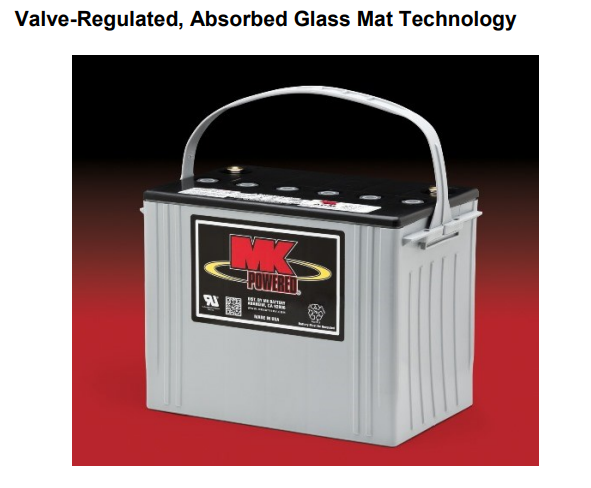

MK BATTERY 8A24 HEI (12V 79Ah)

SPECIFICATIONS
Nominal Voltage (V) 12V
Capacity at C/100 91 Ah
Capacity at C/20 79 Ah
Capacity at C/5 69.2 Ah
Weight 52 lbs. (24 kg)
Plate Alloy Lead Calcium
Post Seal Epoxy-Sealed
Container/Cover Polypropylene
Operating Temperature Range
 -40°F (-40°C) - 140°F (60°C)
Caltrans BBS temperature clause will be supported
Temperature and battery age effect runtime
Charge Voltage @ 77°F (25°C)
Charge / Absorption / Equalize 2.30 - 2.43 VPC
Float / Standby 2.23 - 2.26 VPC
Vent Self-sealing
Terminal C (Insert w/ 1/4" - 20 round hole

DIMENSIONS
Inches (mm)
Length 10.90 (277 mm)
including handle
Width 6.56 (167 mm)
Height 8.27 (210 mm)
