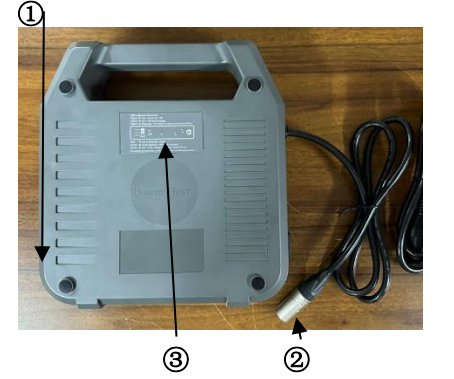

MK BATTERY LS24/10A-08 (24V 10Ah)

1. Power Cord
2. Output Plug to Battery
3. Indicator: - Y ○ Yellow on = Power on/off
- Y ○ Yellow on =Normal charging
 ○ Yellow flashing = No battery or
incorrect battery fitted.
- R ○ Red on = Fault
- G ○ Green on = Fully charged,
batteries ready for use.

Model LS24/10A-08
Output Current (DC) 10A±5%
Charging Voltage (DC) 28.6V±0.2V
Floating Voltage (DC) 27.0V±0.2V
Input Current (AC) 4.1A max.
Input Voltage (AC) 100 ~ 240 Vac; 50/60Hz
Efficiency AC-DC 89% min (@ 230Vac); 87% min (@110Vac)
Operating Temperature 0°C ~ 40°C
Switching Method SWITCHING MODE
Charging Method Constant current, two stage constant voltage
Battery Application 24V Lead Acid Rechargeable Battery (60Ahr ~ 120Ahr)
Output Detection
1. Short Circuit Protection
 2. Reverse Power Protection
3. Overheat Protection
4. Charging Plug Protection
Operating Humidity 10％ ~ 95 %
Measure L 240mm×W 76.5mm×H 258mm
Weight 2.3 Kg
Color Grey

OPERATING INSTRUCTION
(1) Make sure the battery charger output voltage is the same as the
connecting battery.
(2) Plug in the power cord. LED indicates green flash when AC power on.
(3) Connect the battery charger to the battery.
(4) Start charging; please refer to 4. LED INDICATION.
