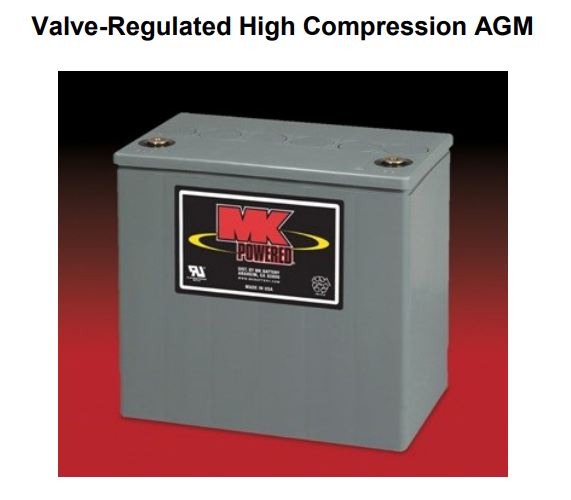

MK BATTERY M22NF-HC (12V 48.4Ah)

SPECIFICATIONS
Nominal Voltage (V) 12V
Capacity at C/100 51.2 Ah
Capacity at C/20 48.4 Ah
Capacity at C/5 41.7 Ah
Weight 40 lbs. (18 kg)
Plate Alloy Lead Calcium
Posts Epoxy Threaded Insert
Container/Cover Flame Retardant Polypropylene
 UL 94 V-0/>28% L.O.I.
Operating Temperature Range
 -40°F (-40°C) - 104°F (40°C)
Charge Voltage @ 77°F (25°C)
Cycle 13.8 - 14.6 volts
Float 13.4 - 13.6 volts
Vent Self-sealing
Terminal Threaded Insert

DIMENSIONS
Inches (mm)
Length 8.99 (228 mm)
Width 5.47 (139 mm)
Height 8.27 (210 mm)
Including terminal
