Up to 55° Intelligent Rotation in Space (IRIS) Technology for smooth tilting.
Seat frame rotates around rider’s center of gravity for optimal positioning.
Shortest possible wheelbase for superior maneuverability and stability.
40°, 55°, or 60° rotation ranges for up to 45° or 60° posterior tilt.
Unique curved rocker arm maintains alignment of center of gravity and rotation.
Reduces risks like front-loading casters and triggers for spasticity.
Standard weight capacity 300 lbs; Heavy Duty capacity 400 lbs.
Power Tilt lets rider adjust position via toggle switch on armrest.
Attendant Control allows caregiver tilt without manual effort.
Toggle switch can be mounted vertically or horizontally for convenience.
Charging port located on toggle switch for easy access.
Optional retrofit kit available for Power Tilt feature.
Empulse R20 power-assist device aids caregiver pushing and folds for transport.
Reverse configuration option for increased self-propulsion control.
Description:

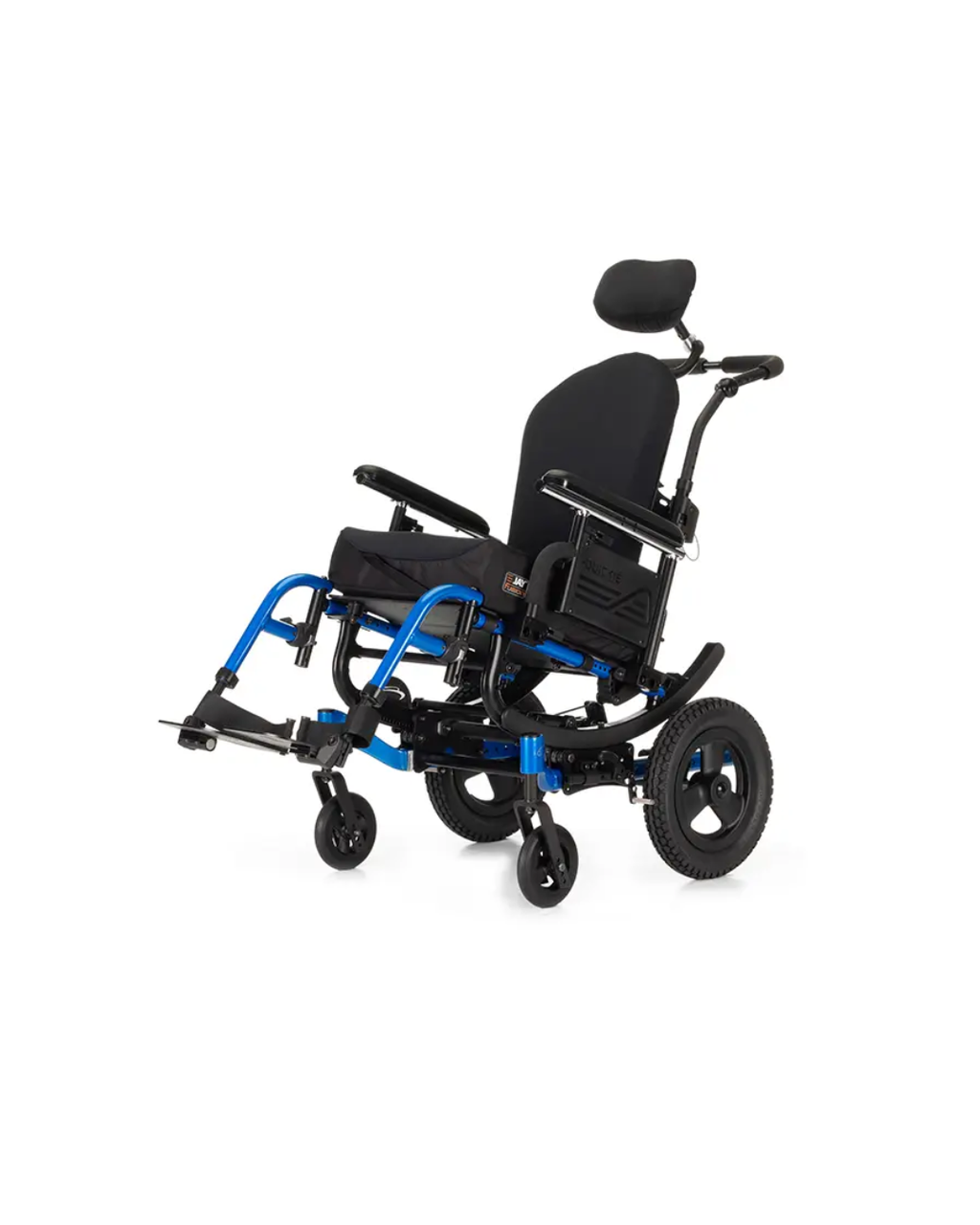

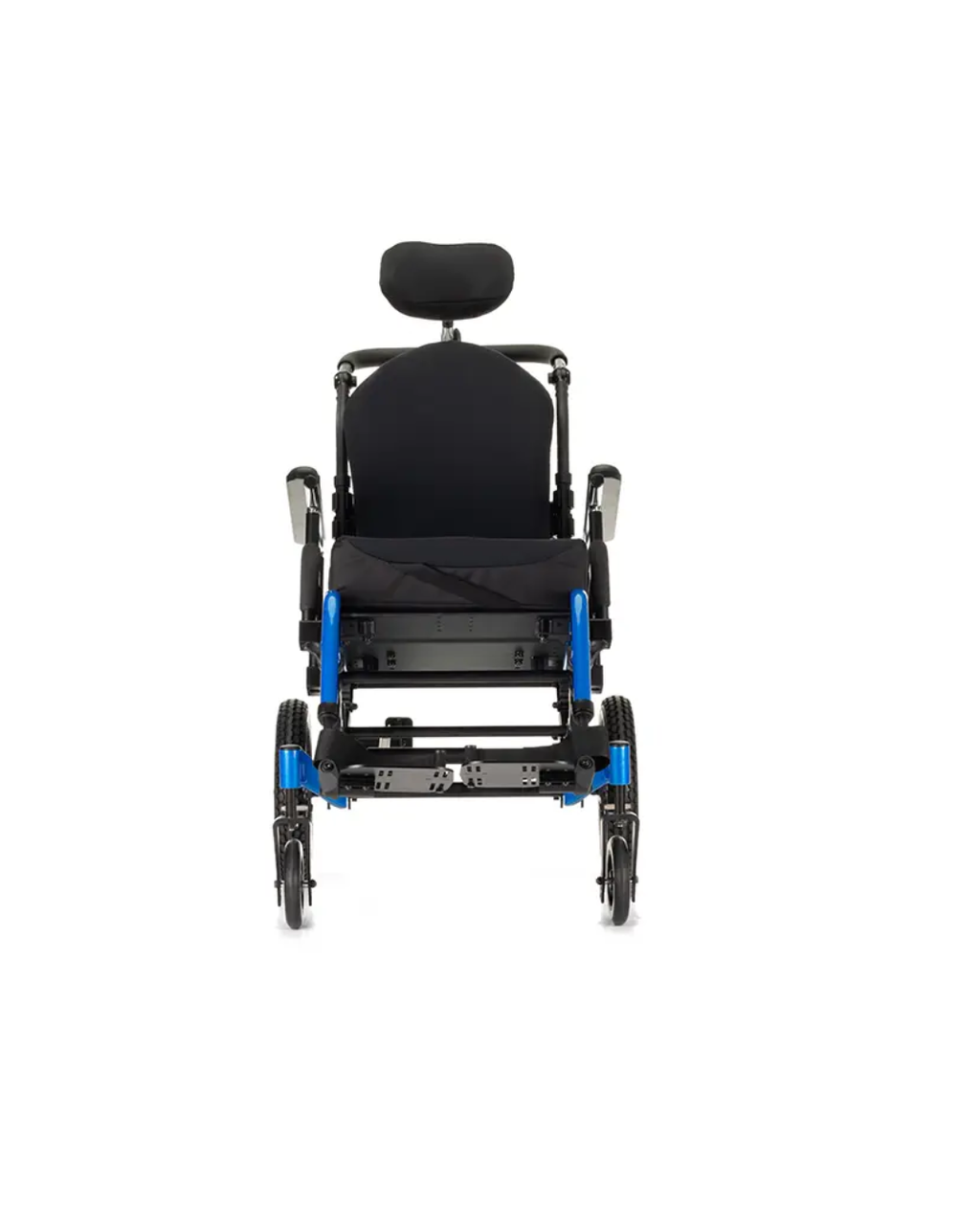

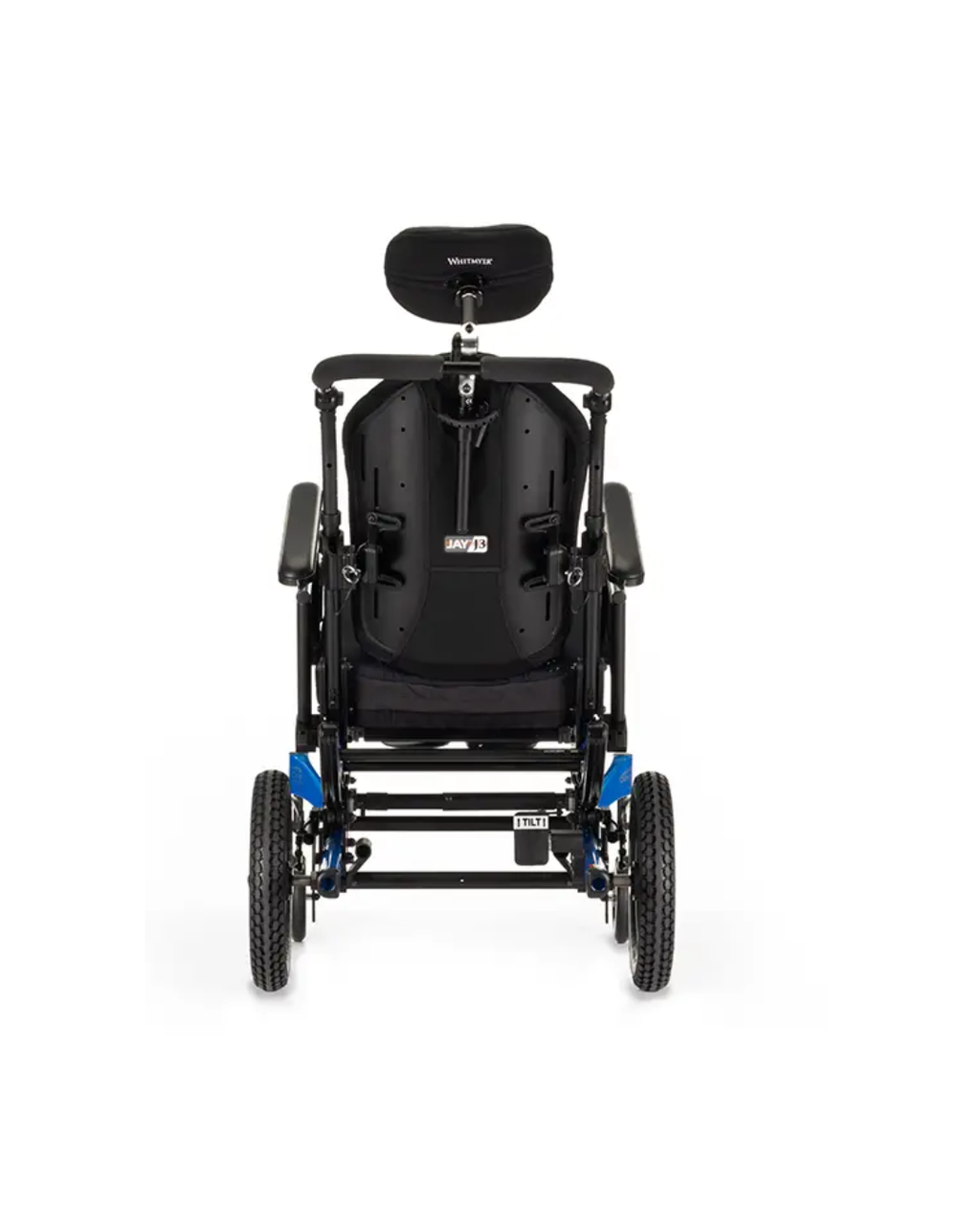

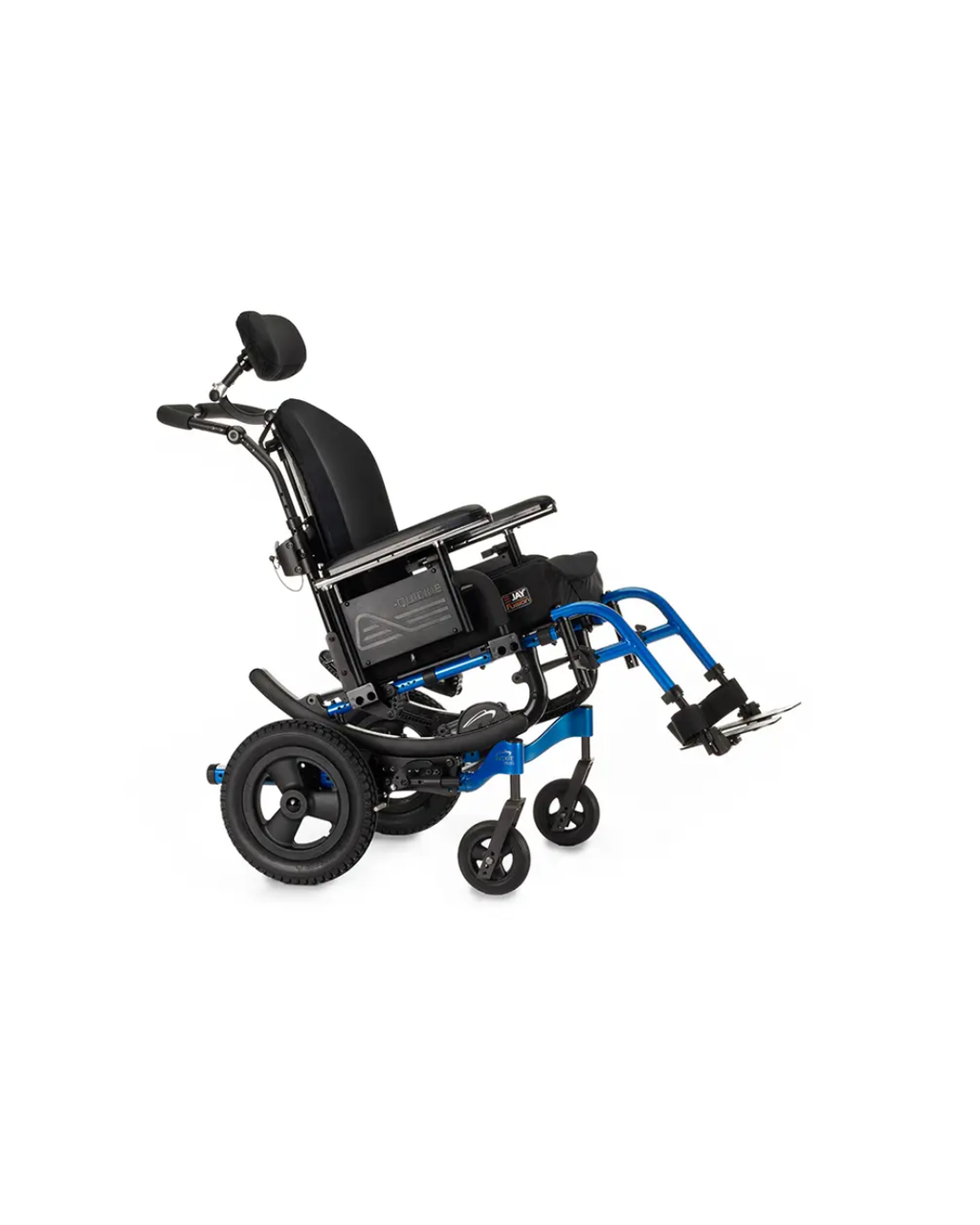

The QUICKIE IRIS tilt-in-space wheelchair offers an advanced seating system with up to 55° of rotation technology, enabling smooth and stable positioning around the rider’s center of gravity. This design minimizes wheelbase length for easier maneuvering while maintaining stability. It supports heavy-duty use with options for 300 or 400 lb capacities. The Power Tilt feature empowers riders to control their comfort, while caregivers can operate the chair using the Attendant Control. The Empulse R20 device helps caregivers push uphill or long distances effortlessly. Seating systems like Ride Designs and the MONO Backrest System provide customizable support, with many accessories available to optimize fit and function.
Specifications:
Seat Width: 14" to 22"
Seat Depth: 14" to 22"
Front Seat-to-Floor Height: 12.5" to 19.5"
Rear Seat-to-Floor Height: 12.5" to 19.5"
Tilt Range: 40°, 55°, or 60°
Back Height: 15" to 21" or 18" to 24"
Back Angle Adjustment: -30° to +5°
Camber: 0°
Shipping Dimensions:
Boxed: 36" L x 28" W x 37" H and 20" L x 10" W x 20" H
Palletized: 47" L x 40" W x 54" H
Model Number: EIZ4-2
HCPCS Codes: E1161 / E1233
Frame Types: Standard, Heavy Duty, Vent/Battery Base Tray, Contrature Seat Frame
Frame Struts: Fixed or Width Adjustable
Frame Material: Aluminum
Transit Approved: Yes
User Weight Capacity: Standard 300 lbs., Heavy Duty 400 lbs.
